What Are Gasketed Plate Heat Exchangers and Why Do They Matter?

According to the report by Next Move Strategy Consulting, the global Gasketed Heat Exchangers Market size is predicted to reach USD 3.4 billion by 2030 with a CAGR of 6.4% from 2024-2030.

Gasketed plate-and-frame heat exchangers (GPHEs) are compact, modular devices that transfer heat between two fluids by forcing them to flow through alternating channels formed by corrugated plates sealed with elastomeric gaskets. Compared with shell‑and‑tube units, GPHEs deliver exceptionally high thermal efficiency and a minimal footprint. Their plate geometry promotes turbulent flow at relatively low velocities, yielding rapid heat transfer while the gasket seals prevent any risk of cross‑contamination—critical in industries such as food & beverage and pharmaceuticals.

Try Your Free Sample Here: https://www.nextmsc.com/gasketed-heat-exchangers-market/request-sample

Key Advantages

• High thermal performance: Corrugated plates maximize surface area and turbulence for efficient exchange.
• Flexible capacity: Adding or removing plates instantly adjusts duty.
• Simple maintenance: Gasket seals and plate packs can be serviced without specialist tools.

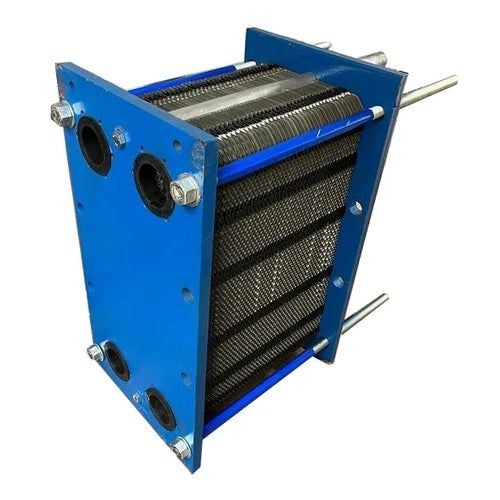

How Do Gasketed Plate Heat Exchangers Work?

According to the report by Alfa Laval, a typical GPHE comprises:

1. Frame plate and pressure plate: Form the rigid outer structure.
2. Plate pack: A stack of corrugated metal plates, each fitted with an elastomeric gasket.
3. Tightening bolts: Compress the assembly to secure leak‑free gasket seals.

Fluids enter on alternate sides of the plate pack and (in standard operation) flow counter‑currently, achieving very close temperature approaches—often within 1 °C of one another. For sensitive products, co‑current flow can be selected to limit temperature gradients across the media.

What Innovations Define the 2024 Hygienic Line?

According to Food and Drink Technology report, in October 2024, Alfa Laval extended its sanitary GPHE portfolio with the Hygienic Line, which today includes H4, H8, HL8, and HL5 (with HL10 due by year‑end). Building upon earlier models, this line introduces two game‑changing features:

• Expanded transfer area for uniform heat distribution and best‑in‑class efficiency.
• Dedicated CIP channel that allows in‑place cleaning without disassembly.

These enhancements are designed to retrofit existing installations and cater to diverse flow rates and duty requirements, all while minimizing downtime and chemical usage.

How Does SmoothPort™ Enhance Cleanability?

According to the report by Food and Drink Technology, SmoothPort™ rethinks the gasket‑to‑plate interface by repositioning the gasket edge flush with the plate surface. This innovation:

• Prevents particle entrapment at gasket edges
• Maximizes drainage during CIP cycles
• Reduces the number of cleaning passes and chemical consumption

By eliminating micro‑pockets where residue can accumulate, SmoothPort™ extends uninterrupted run times and further lowers maintenance costs.

What Operational Benefits Can Manufacturers Expect?

According to the report by Food and Drink Technology, Real‑world trials show that the Hygienic Line can transform cleaning regimes:

• Cleaning time reduced from 4 hours per 8 hours of operation to 2 hours per 12 hours.
• Cleaning cycle share drops from 33 % to 17 % of total uptime.
• Payback periods as short as one week, thanks to lower energy and chemical usage

The result is extended uptime, higher throughput, and sharply reduced OPEX—delivering a compelling ROI for food, drink, and pharmaceutical producers alike.

Editor’s Recommendations

1. Benchmark your current CIP cycle and calculate potential cleaning‑time savings.
2. Compare existing GPHEs’ CIP requirements against the Hygienic Line’s in‑place cleaning channels.
3. Pilot-test H4 or H8 units on a small production line to validate performance gains.
4. Model your ROI using local energy, labor, and chemical costs to confirm the sub‑week payback.
