What Are VPX SBCs and Why Are They Transforming Embedded Computing?

What Are VPX SBCs and Why Are They Transforming Embedded Computing?

According to the report by Next Move Strategy Consulting, the global VPX SBC Market size is projected to reach USD 499.9 million by 2030, with a CAGR of 14.4% from 2025-2030.

With the rapid advances in defense and aerospace requirements, Single Board Computers (SBCs) using the VPX standard have emerged as a critical technology for high-performance, rugged applications. From unmanned vehicles to edge artificial intelligence systems, VPX SBCs deliver the processing power, bandwidth, and reliability that modern missions demand.

Try Your Free Sample Here: https://www.nextmsc.com/vpx-sbc-market-se2909/request-sample

1. What Is a VPX SBC?

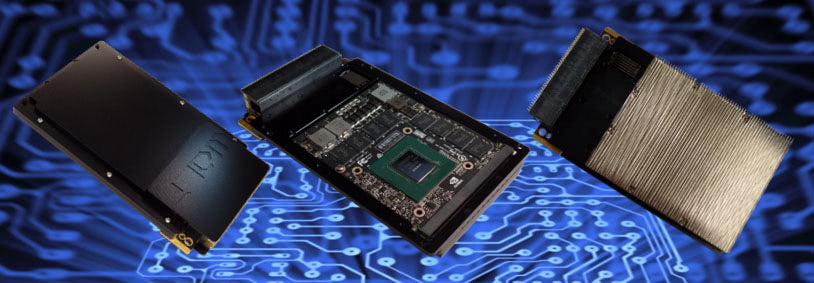

VPX is an OpenVPX standard that defines a high-speed backplane interconnect architecture for embedded systems. A 3U VPX SBC is a compact, ruggedized circuit board that integrates processing, memory, and I/O interfaces into a single slot on a VPX backplane.

Key Characteristics:

  • Conforms to ANSI/VITA 46/65 standards for interoperability
  • Compact 3U form factor (100 mm x 160 mm)
  • Ruggedized for MIL-STD-810 environmental requirements

Summary: VPX SBCs are compact, standardized computing modules built for harsh environments, ensuring seamless integration and high reliability.

  • Compact and standardized: 3U form factor
  • Rugged and interoperable: ANSI/VITA compliance

2. What Are the Key Features of the GE 3U VPX SBC?

GE Intelligent Platforms’ SBC312 delivers a powerful upgrade path for existing users of dual-core boards:

  • Eight-core Freescale QorIQ P4080 processor running up to 1.5 GHz
  • Up to 4 GBytes of dual-channel DDR3 memory
  • Two x4 PCI Express Gen2 links, optionally configurable as four x1 links or as 10 Gigabit Ethernet
  • Two 1000BaseT, two USB 2.0, two SATA, two serials, and up to eight GPIO ports
  • Available in five air- and conduction-cooled ruggedization levels

Summary: The GE SBC312 balances multi-core performance and power efficiency, offering flexible I/O and ruggedization for MIL/Aero applications.

  • Eight cores for high throughput
  • Flexible I/O: PCIe Gen2, Ethernet, USB, SATA
  • Multiple cooling and ruggedization options

3. What Performance Does the EIZO 3U VPX SBC Deliver?

According to military aerospace, EIZO Rugged Solutions’ Condor AGX-ORIN64-HPC targets artificial intelligence at the edge:

  • NVIDIA Jetson AGX Orin SoM with 12-core Arm Cortex-A78AE CPU
  • 2048 CUDA cores plus 64 Tensor Cores for AI acceleration
  • 64 GB LPDDR5 system memory with 205 GB/s bandwidth
  • NVIDIA ConnectX-7 NIC for up to 100 Gb/s Ethernet with GPUDirect RDMA
  • Expandable storage: 64 GB eMMC plus M.2 2230 site; high-speed I/O: USB 3.2, DisplayPort, RS-232

Summary: The Condor AGX-ORIN64-HPC delivers unmatched AI performance and low-latency data transfer for C5ISR applications.

  • AI at the edge: 2048 CUDA cores, Tensor Cores
  • High-bandwidth memory and networking
  • Modular design for expandable storage and I/O

4. Why Are VPX SBCs Ideal for Edge AI Applications?

According to military aerospace, Edge AI demands low-latency, high-throughput processing close to sensors. VPX SBCs fulfil these requirements by offering:

  • Shared memory architectures between CPU, GPU, and DL accelerators for efficient data flow
  • High-speed backplane I/O with 10/25/100 Gb Ethernet and PCIe Gen3/4 links
  • Ruggedization for operation in temperature extremes and vibration environments

Summary: By combining processing, memory, and I/O on a rugged board, VPX SBCs enable real-time AI inference in demanding environments.

  • Efficient data sharing across compute engines
  • Scalable I/O for sensor-to-compute pipelines
  • Reliability under harsh conditions

5. What Are the Industry Implications of These Advancements?

The evolution of VPX SBCs shows a trend toward converged computing and networking in mission-critical systems:

  • Single-slot high-density solutions reduce size, weight, and power (SWaP)
  • Standardization via OpenVPX and SOSA paves the way for modular upgrades
  • Accelerated adoption in defense, aerospace, and industrial automation

Summary: VPX SBC advancements drive efficiency and adaptability across industries by standardizing high-performance embedded computing.

  • SWaP optimizations for next-gen platforms
  • Modular ecosystems for technology insertion

Next Steps

To leverage VPX SBC technology in your projects, consider the following actionable steps:

  1. Evaluate your computing requirements: cores, memory bandwidth, and I/O needs.
  2. Identify the appropriate VPX SBC standard (OpenVPX, SOSA-aligned) for interoperability.
  3. Assess environmental ruggedization levels for your operational profile.
  4. Plan for software support: select BSPs and SDKs that match your OS and middleware.
  5. Engage with vendors to request samples and conduct performance benchmarking.

By following these steps, you can select and integrate the optimal VPX SBC solution for your edge computing and mission-critical applications.
